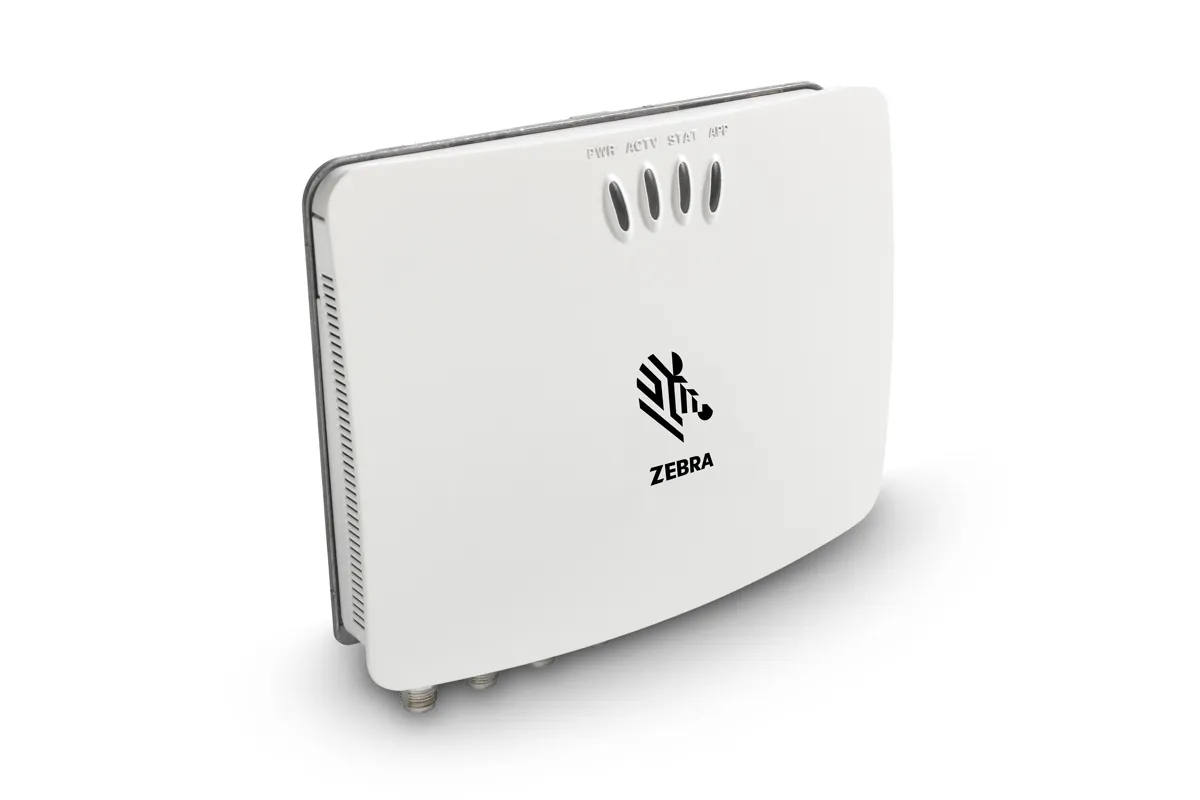

Zebra FX7500

Zebra · Fixed RFID reader

Zebra FX7500

View and download the technical specification sheet for the FX7500 Fixed RFID Reader.

  • Operating systemLinux

Datasheet at Zebra Product page at Zebra

Warning: This device is not compatible with Raptool apps. But you can use the Raptool Integration Server to send and receive data from the device to any other system.

Specifications

Platform

Operating system
Linux
Processor
Texas Instruments AM3505 (600 Mhz)
RAM / storage options
Flash 512 MB; DRAM 256 MB

Data capture

RFID
EPCglobal UHF Class 1 Gen2, ISO 18000-6C

Power

Charging / power
POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported

Rugged

Operating temperature
-4° to +131° F/-20° to +55° C -4°F to 131°F (-20°C to 55°C)
Storage temperature
-40° to +158° F/-40° to +70° C
Humidity
5-95% non-condensing

Size

Weight
1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
Dimensions
7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)
