Zebra AN480

Zebra · RFID antenna

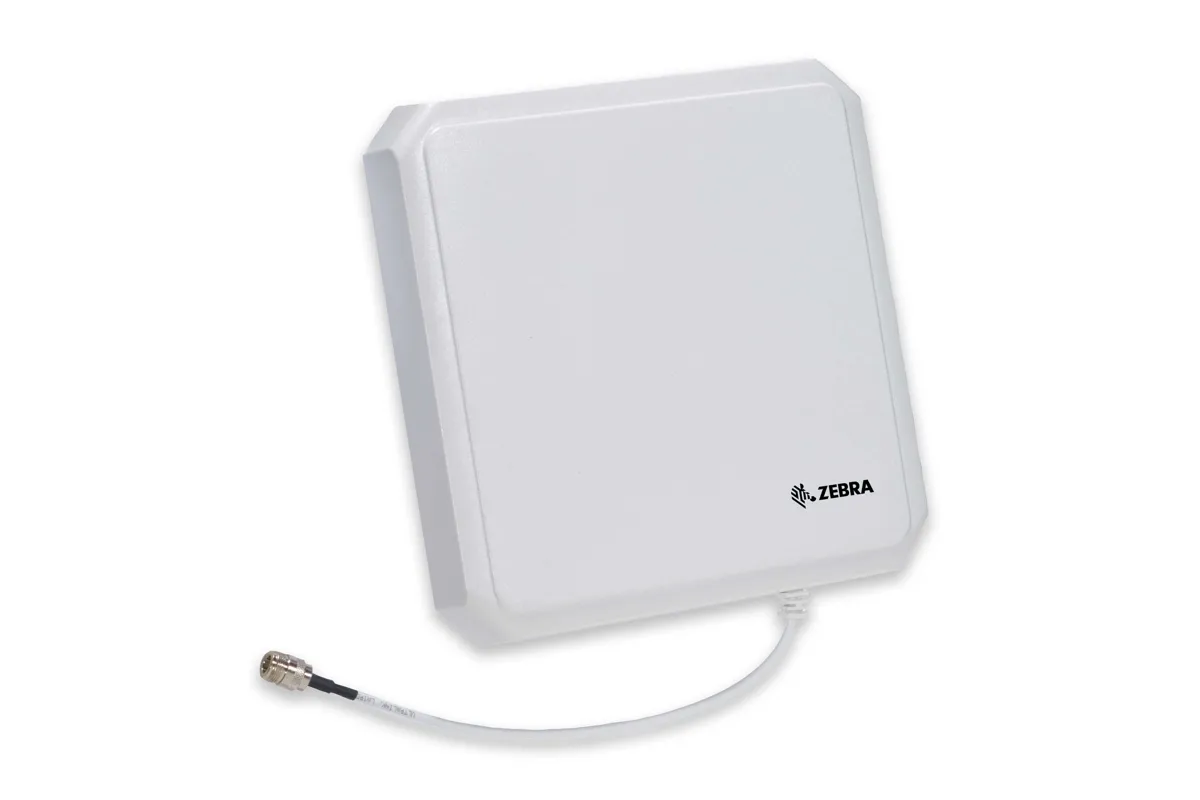

Zebra AN480

The AN480 single-port antenna offers maximum performance and is designed for use worldwide.

  • SealingIP54

Datasheet at Zebra Product page at Zebra

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

RF performance

Frequency range
865–956 MHz (worldwide)
Gain
6.0 dBiL
Polarization
Left-hand circular or right-hand circular (AN480-CR66100WR: right-hand circular)
3 dB beam width
65° in both planes
Axial ratio
1.5 dB typical
VSWR (return loss)
1.3:1
Front-to-back ratio
18 dB
Maximum power
2 W

Physical characteristics

Connector
N-Type female
Connector location
Rear
Mounting
Mounting studs provided (Zebra standard mounting bracket)
Dimensions
259.1 x 259.1 x 33.5 mm (10.2 x 10.2 x 1.32 in.)
Weight
1.13 kg (2.5 lbs)
Casing / materials
Aluminum with white plastic cover

Environment

IP sealing
IP54
Operating temperature
-25 to +70 °C (-13 to +158 °F)
Storage temperature
-40 to +70 °C (-40 to +158 °F)
Humidity
IEC-68-2-30
Vibration
IEC-68 series

Compatibility

Compatible readers
Zebra FX9600, Zebra FX7500 fixed RFID readers
Part number
AN480-CR66100WR (RHCP, 865–956 MHz, 6 dBiL)

Lifecycle

Status basis
Listed on Zebra RFID reader antennas page and in the Zebra UHF RFID antennas brochure (06/2025).
