Honeywell · Handheld computer

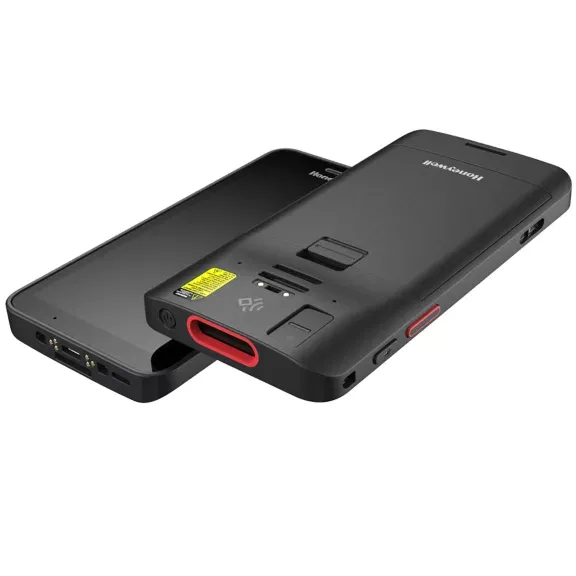

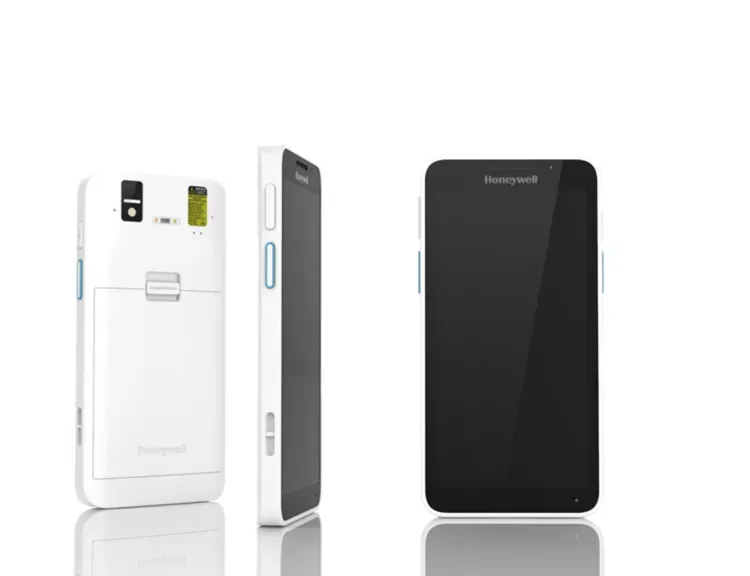

Honeywell CT30 XP

The CT30 XP is a durable, all-purpose business tool ensuring ultra-reliable data access and communications for front-line mobile workers.

Operating systemAndroid Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and…
Display13.97 cm (5.5 in)
ScanningHoneywell S0703 VE; Honeywell FlexRange; Laser aimer; 1D/2D Barcode Symbologies
Battery3400mAh; Li-Ion; smart battery with integrated diagnostics tools 3400mAh Li-Ion; smart battery with…
SealingIP67
Drop1.2 m (4 ft) to concrete at through operating temperature per MIL-STD 810H; 1.5m (5ft ) to concret at room…

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Camera Position: Front and Rear

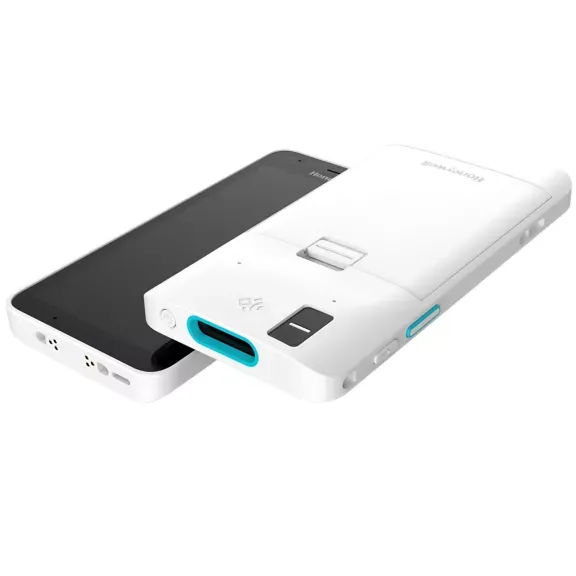

Housing Grade: Disinfectant Ready Housing
For Use With: Android
Connectivity: Wi-Fi Wi-Fi & Cellular
Environment: Healthcare Standard
Application: Soft Goods Retail, General Merchandise and Healthcare
Features: Compatible with Universal Dock
Cameras: 13-megapixel rear camera 8-megapixel front camera
Dimensions: 154 mm x 76 mm x 12.6 mm 6.06 in x 2.99 in x 0.50 in
Decode Capability: 1D/2D Barcode Symbologies
Bluetooth Specifications: V5.1 Bluetooth and BLE; 2nd BLE availble on all SKUs except CT30P-XXX-XXXXXNX . Bluetooth profiles includes HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
WWAN Specifications: AT&T FirstNet Compliant GSM: 850, 900, 1800, 1900 (Quad Bands) LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71 UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19 Up to 390 Mbps CAT13 LTE downlink and up to 75 Mbps CAT5 LTE uplink: WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
WLAN Specifications: All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc All other configurations: IEEE 802.11 a/b/g/n/ac; All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc CT30P-L0N, CT30P-L1N: Wi-Fi 5, IEEE 802.11 a/b/g/n/ac CT30P-X0N: Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax and 2x2 MU-MIMO
RFID Specifications: Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
GPS Specifications: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and BeiDou
Operating System Type: Android
Operating system: Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
Platform: Mobility Edge
RAM / storage options: 6GB DDR4x RAM, 64GB UFS Flash; 4GB DDR4x RAM, 64GB UFS Flash
Display resolution: Full High-Definition (2160 x 1080)
Scan Engine Model: Honeywell S0703 VE; Honeywell FlexRange
Scan Engine Type: Laser aimer
Scan range / decode distances: Standard Range (0-1m)
Display size: 13.97 cm (5.5 in)
Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Keyboard / keys: Touchscreen
Keyboard / keys: Full Touchscreen
Battery / runtime: 3400mAh
Battery Types: Replaceable between shifts; Warm-swappable
Battery / runtime: Li-Ion; smart battery with integrated diagnostics tools
Storage temperature: -22°F to 158°F -30°C to 70°C
Operating temperature: -10°C to 50°C (14°F to 122°F)
Humidity: 5% to 95% (non-condensing)
Tumble specification: Exceeds 500 0.5 m (1.64 ft) tumbles per IEC 60068-2-32 specification
Drop specification: 1.2 m (4 ft) to concrete at through operating temperature per MIL-STD 810H; 1.5m (5ft ) to concret at room temperature per MIL-STD 810H.
Protection Ratings: IP67
Warranty Duration: LTE Advanced Support One-year factory warranty
Brand: Honeywell
Industry: Retail
Connectivity: Wi-Fi|Wi-Fi & Cellular
Environment: Healthcare|Standard
Cameras: 13-megapixel rear camera|8-megapixel front camera
Dimensions: 154 mm x 76 mm x 12.6 mm|6.06 in x 2.99 in x 0.50 in
WWAN Specifications: AT&T FirstNet Compliant|GSM: 850, 900, 1800, 1900 (Quad Bands)|LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71|UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19|Up to 390 Mbps CAT13 LTE downlink and up to 75 Mbps CAT5 LTE uplink:|WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
WLAN Specifications: All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc|All other configurations: IEEE 802.11 a/b/g/n/ac; All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc|CT30P-L0N, CT30P-L1N: Wi-Fi 5, IEEE 802.11 a/b/g/n/ac|CT30P-X0N: Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax and 2x2 MU-MIMO
Storage temperature: -22°F to 158°F|-30°C to 70°C
Warranty Duration: LTE Advanced Support|One-year factory warranty
X: BRV900~51400955-100
Operating temperature: (14°F to 122°F)
Storage temperature: (-22°F to 158°F)

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
