Honeywell · Handheld computer

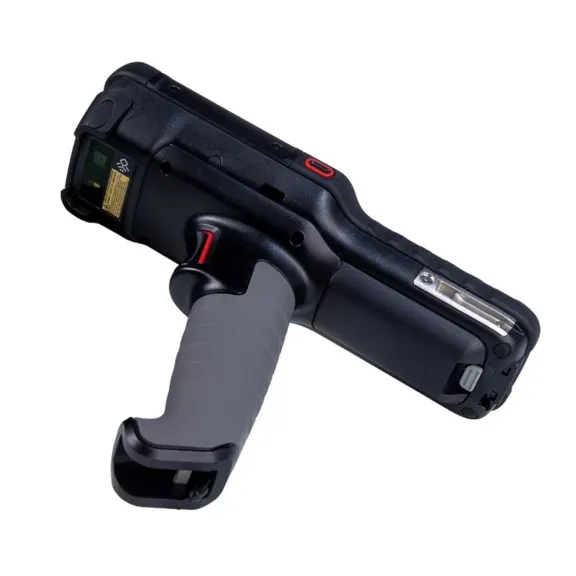

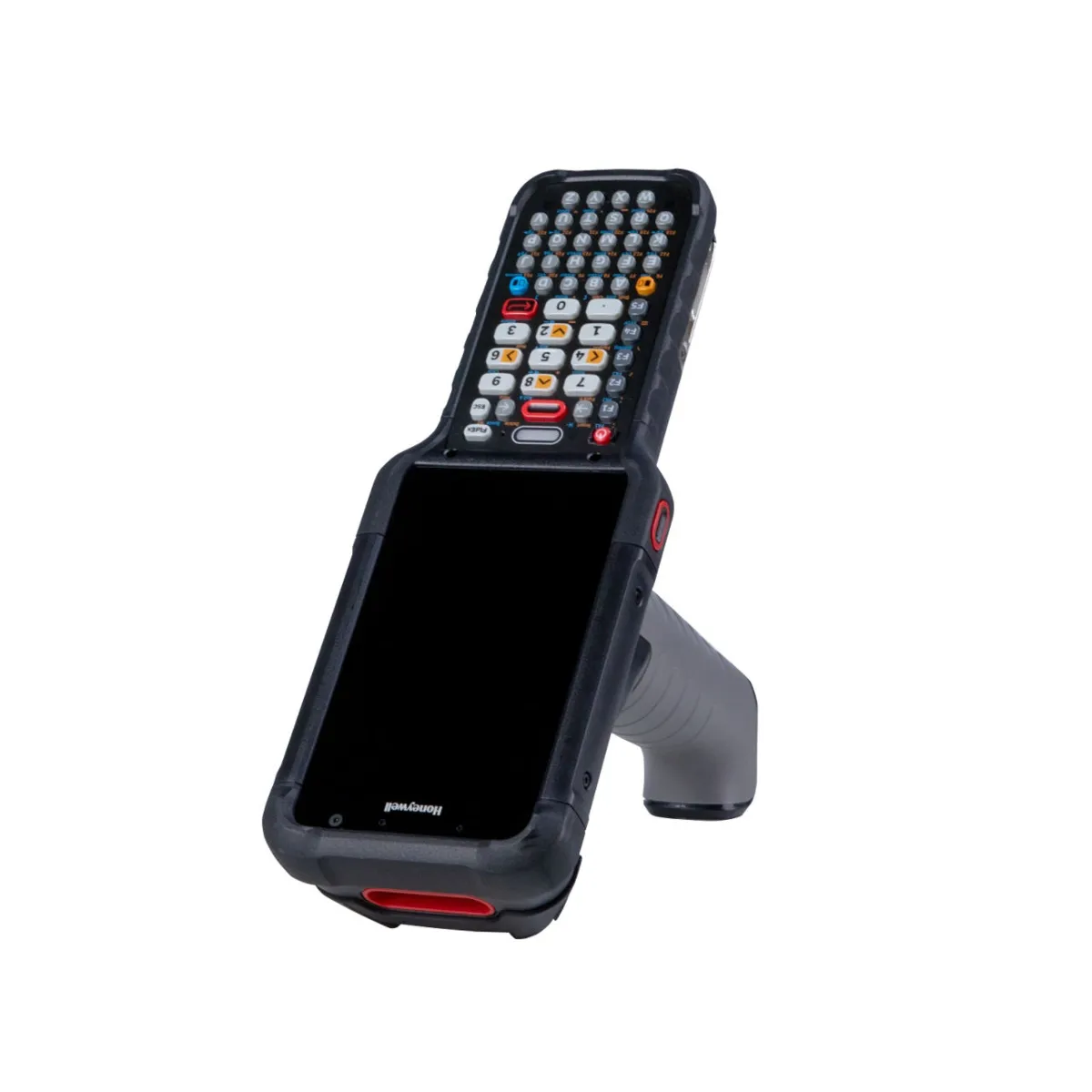

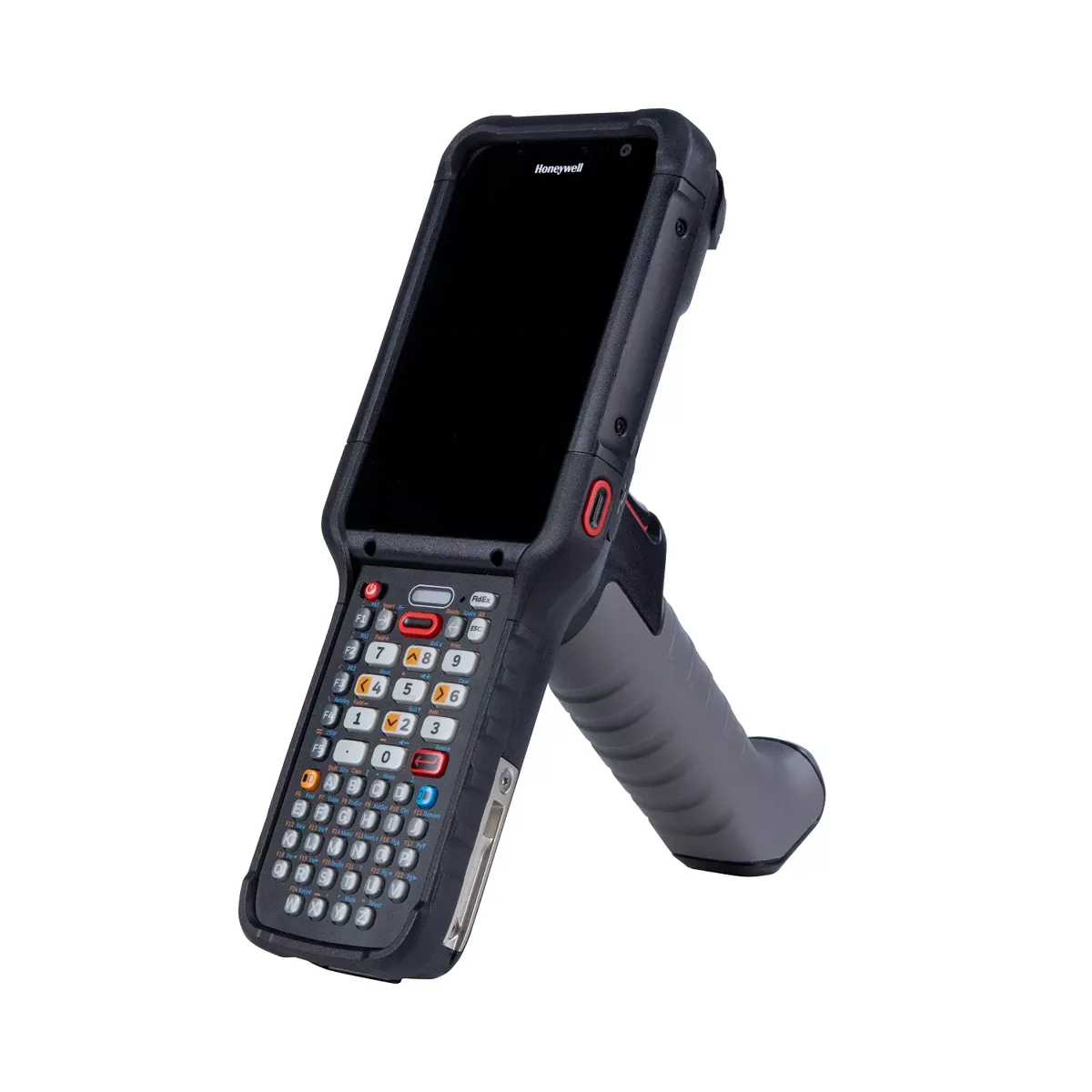

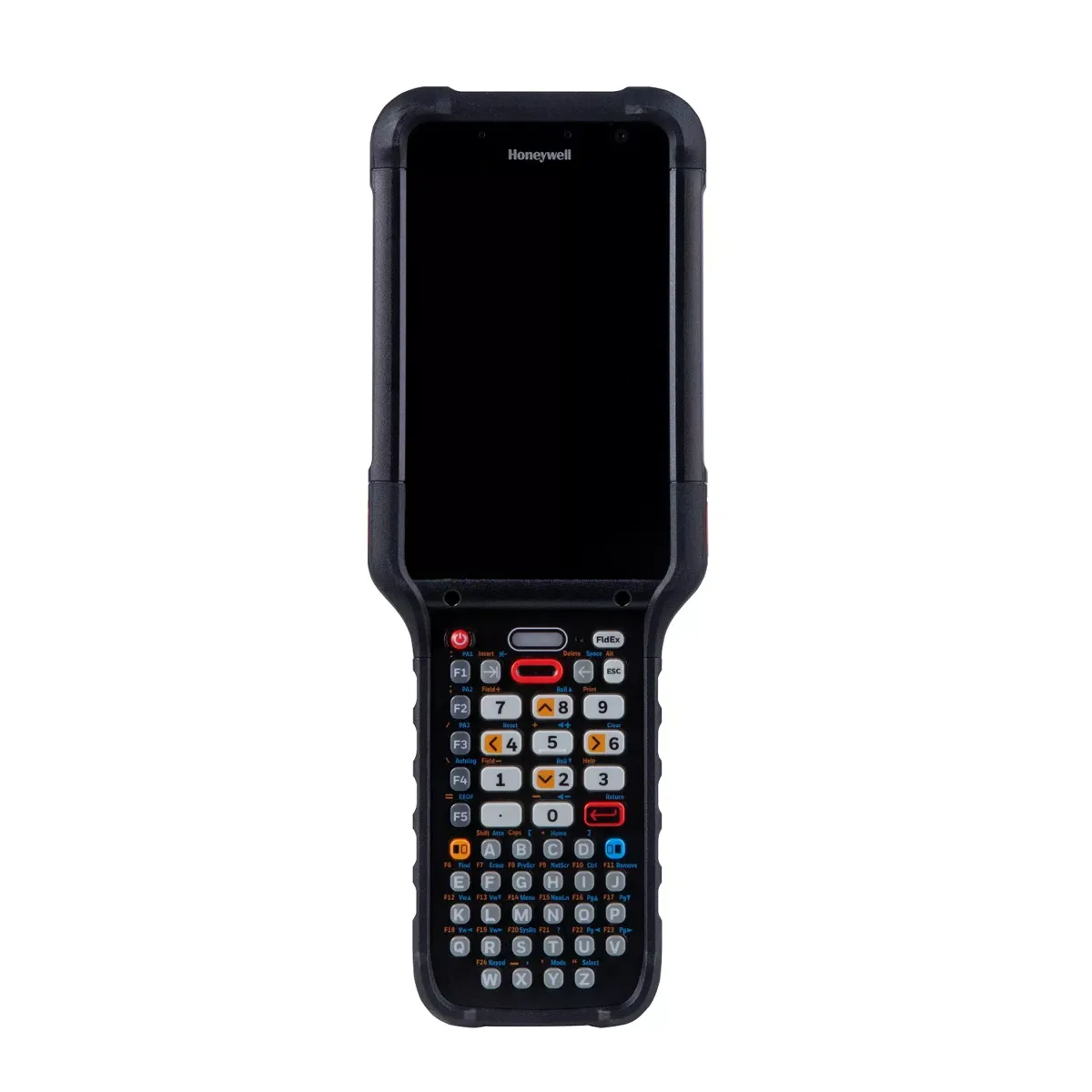

Honeywell CK67

CK67 mobile computers, built on the Mobility Edge™ platform, are ultra-rugged, all-purpose productivity devices ensuring reliable performance, ergonomic design, 5G and Wi-Fi 6E data connectivity for users in Distribution Centers and Warehouses.

Operating systemAndroid Released with Android 14 and guaranteed through Android 18
Display10.9cm (4.3in)
ScanningHoneywell FlexRange™|Standard Range Engine (1D/2D barcode symbologies)|Yes
Battery7000mAh; Lithium Ion|smart battery with integrated diagnostic tools 7000mAh Lithium Ion smart battery with…
SealingCertified for IP65 & IP68
Drop10ft drop|Multiple 2.4m (8ft) drops to concrete booted per MIL-STD-810H at -10°C to 50°C (14°F to 122°F)…

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Cameras: 8MP, 13MP
Camera Position: Front and Rear
Connectivity: Wi-Fi & Cellular
Environment: Standard
Application: Distribution Center Warehouse Yards
Durability: 4000 1.0m tumbles
Dimensions: 22.7cm x 8.3cm x 4.2cm; 8.3in x 3.3in x 1.6in Weight: 508g
Decode Capability: Honeywell FlexRange™ Standard Range Engine (1D/2D barcode symbologies) Yes
Computer Wireless Communication: Yes
Bluetooth Specifications: 5.3
WWAN Specifications: 4X4 MIMO supported: 5G: n2, n7, n25, n30, n38, n41, n48, n66, n77, n78, n79; 4G : B2, B4, B7, B25, B30, B38, B41, B42, B43, B48, B66 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79 5G NSA – DL: ~2500 Mbps, UL: ~1050 Mbps 5G SA – DL: ~2300 Mbps, UL: ~1050 Mbps AT&T FirstNet Compliant Global bands support, device certified with GCF-PTCRP, ATT, TMO, VZW LTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink 4G-LT
WLAN Specifications: 5GHz: 802.1/n/ac/ax- 20MHz, 40MHz, 80MHz, 160MHz upto 2402Mbps; 802.11ax20MHz, 40Mhz, 80MHz, 160Mhz-upto 2402 Mbps Data Rates: 2.4GHz:802.11b/g/ ax- 20MHz -upto 286.8 Mbps Dual Band Simultaneous(DBS) IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO IPv4 IPv6 Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible Triband (2.4GHz, 5GHz, 6GHz) WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise) Wi-Fi certified Wi-Fi™ 6E (801.11ax) Wi-Fi™ 6E certified
GPS Specifications: Yes
Operating system: Released with Android 14 and guaranteed through Android 18
Platform: Mobility Edge
RAM / storage options: 8GB DDR4x RAM, 128GB UFS Flash User-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)
Display resolution: 800 x 480
Scan range / decode distances: Long Range (0-20m) Mid Range (0-5m) Standard Range (0-1m)
Display size: 10.9cm (4.3in)
Processor: QCM4490 Qualcomm QCS4490/QCM4490 octa-core 2.4GHz
Keyboard / keys: 51 or 53-key alpha numeric, 38 or 42-key numeric function, or 30- key large numeric keypads, plus two programmable side buttons Backlight LED Yes
Network: Wi-Fi 6E
Keyboard / keys: Alphanumeric Numeric
Battery / runtime: 7000mAh
Battery / runtime: Lithium Ion smart battery with integrated diagnostic tools
Storage temperature: -30°C to +70°C (-22°F to +158°F)
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Cold Storage: Yes
Tumble specification: Exceeds 4,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specification
Drop specification: 10ft drop Multiple 2.4m (8ft) drops to concrete booted per MIL-STD-810H at -10°C to 50°C (14°F to 122°F)
Protection Ratings: Certified for IP65 & IP68
Warranty Duration: One year factory warranty
Industry: Healthcare Logistics & Warehouses Manufacturing Retail
Application: Distribution Center|Warehouse|Yards
Dimensions: 22.7cm x 8.3cm x 4.2cm; 8.3in x 3.3in x 1.6in|Weight: 508g
Decode Capability: Honeywell FlexRange™|Standard Range Engine (1D/2D barcode symbologies)|Yes
WWAN Specifications: 4X4 MIMO supported: 5G: n2, n7, n25, n30, n38, n41, n48, n66, n77, n78, n79; 4G : B2, B4, B7, B25, B30, B38, B41, B42, B43, B48, B66|5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79|5G NSA – DL: ~2500 Mbps, UL: ~1050 Mbps|5G SA – DL: ~2300 Mbps, UL: ~1050 Mbps|AT&T FirstNet Compliant|Global bands support, device certified with GCF-PTCRP, ATT, TMO, VZW|LTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink 4G-LT
WLAN Specifications: 5GHz: 802.1/n/ac/ax- 20MHz, 40MHz, 80MHz, 160MHz upto 2402Mbps; 802.11ax20MHz, 40Mhz, 80MHz, 160Mhz-upto 2402 Mbps|Data Rates: 2.4GHz:802.11b/g/ ax- 20MHz -upto 286.8 Mbps|Dual Band Simultaneous(DBS)|IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO|IPv4|IPv6|Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible|Triband (2.4GHz, 5GHz, 6GHz)|WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)|Wi-Fi certified|Wi-Fi™ 6E (801.11ax)|Wi-Fi™ 6E certified
RAM / storage options: 8GB DDR4x RAM, 128GB UFS Flash|User-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)
Scan range / decode distances: Long Range (0-20m)|Mid Range (0-5m)|Standard Range (0-1m)
Processor: QCM4490|Qualcomm QCS4490/QCM4490 octa-core 2.4GHz
Keyboard / keys: 51 or 53-key alpha numeric, 38 or 42-key numeric function, or 30- key large numeric keypads, plus two programmable side buttons|Backlight LED|Yes
Keyboard / keys: Alphanumeric|Numeric
Battery / runtime: Lithium Ion|smart battery with integrated diagnostic tools
Drop specification: 10ft drop|Multiple 2.4m (8ft) drops to concrete booted per MIL-STD-810H at -10°C to 50°C (14°F to 122°F)
Industry: Healthcare|Logistics & Warehouses|Manufacturing|Retail
X: BRV900~51400955-100
X: BRV900~51400955-100
Cameras: 8MP, 13MP
Camera Position: Front and Rear
Connectivity: Wi-Fi & Cellular
Environment: Standard
Application: Distribution Center Warehouse Yards
Durability: 4000 1.0m tumbles
Dimensions: 22.7cm x 8.3cm x 4.2cm; 8.3in x 3.3in x 1.6in Weight: 508g
Decode Capability: Honeywell FlexRange™ Standard Range Engine (1D/2D barcode symbologies) Yes
Computer Wireless Communication: Yes
Bluetooth Specifications: 5.3
WWAN Specifications: 4X4 MIMO supported: 5G: n2, n7, n25, n30, n38, n41, n48, n66, n77, n78, n79; 4G : B2, B4, B7, B25, B30, B38, B41, B42, B43, B48, B66 5G FR1: Bands 1, 2, 3, 5, 7, 8, 12, 13, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79 5G NSA – DL: ~2500 Mbps, UL: ~1050 Mbps 5G SA – DL: ~2300 Mbps, UL: ~1050 Mbps AT&T FirstNet Compliant Global bands support, device certified with GCF-PTCRP, ATT, TMO, VZW LTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink 4G-LT
WLAN Specifications: 5GHz: 802.1/n/ac/ax- 20MHz, 40MHz, 80MHz, 160MHz upto 2402Mbps; 802.11ax20MHz, 40Mhz, 80MHz, 160Mhz-upto 2402 Mbps Data Rates: 2.4GHz:802.11b/g/ ax- 20MHz -upto 286.8 Mbps Dual Band Simultaneous(DBS) IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO IPv4 IPv6 Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible Triband (2.4GHz, 5GHz, 6GHz) WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise) Wi-Fi certified Wi-Fi™ 6E (801.11ax) Wi-Fi™ 6E certified

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
